Presses Over 2000 Tons – Affordable Machinery http://affordable-machinery.com The Machinery Dealer You Can Afford Thu, 09 Mar 2017 14:21:45 +0000 en-US hourly 1 https://wordpress.org/?v=4.7.3 100388406 4,500 Ton Verson Transfer Press For Sale – SOLD- CALL FOR UPDATES http://affordable-machinery.com/metal-working-machinery/presses/straight-side-double-crank/verson-transfer-press/ Wed, 04 Jun 2014 14:33:11 +0000 http://affordable-machinery.com/?p=3558 Continue reading →]]> 4,500 Ton Verson Transfer Press For Sale

  • Model: TL-SE8-3000-1500-216-216-120T
  •
  • Capacity: 4,500T – @ 8″ SPM @ 1/2″ Up
  •
  • Capacity of Right Hand Slide: 3,000T
  •
  • Capacity of Left Hand Slide: 1,500T
  •
  • Stroke of Both Slides: 40″
  •
  • Power Adj. of Both Slides: 2″
  •
  • Speed: 8-18 SPM
  •
  • Equipped with: Micro Inch Drive
  •
  • Total Weight of Press: 4,190,000lbs.

Click Here For Updates on Machines & Equipment As They Become Available

]]> 3558 2500 Ton HPM Hydraulic Press – SOLD – CALL FOR UPDATES http://affordable-machinery.com/metal-working-machinery/presses/hydraulic/2500-ton-hpm-hydraulic-press/ Tue, 24 Sep 2013 20:23:51 +0000 http://affordable-machinery.com/?p=2809 HPM Hydraulic Press

Capacity  2500 TON
Bed Area  66″ x 200″
Shut Height  60″
Ram Size  66″ x 200″
Distance Between Post  64″ x 103″
Stroke  24″
2500 Ton HPM Press pic 1 2500 Ton HPM Press pic 2 2500 Ton HPM Press pic 3 2500 Ton HPM Press pic 4
]]> 2809 5000 Ton Bliss Hydraulic Press For Sale – SOLD CALL FOR UPDATES http://affordable-machinery.com/metal-working-machinery/presses/by-manufacture/bliss-press/5000-ton-bliss-hydraulic-press/ Tue, 24 Sep 2013 20:22:39 +0000 http://affordable-machinery.com/?p=2793 Continue reading →]]> 5000 Ton Bliss Hydraulic Press For Sale

 Model  H6-5000-4R-84-204
Capacity  5,000 Tons
Bed Area  84″ x 204″ (4 Posts)
Distance Between Post  84″ x 100″
Daylight 132″
Shut Height 84″
Platen 84″ x 204″
Stroke 48″

Click Here For Updates on Machines & Equipment As They Become Available

2500 Ton HPM Press pic 4 5000 Ton Bliss Hydrualic Press 1 5000 Ton Bliss Hydrualic Press 2 5000 Ton Bliss Hydrualic Press 3 5000 Ton Bliss Hydrualic Press 4 5000 Ton Bliss Hydrualic Press 5 5000 Ton Bliss Hydrualic Press 6 5000 Ton Bliss Hydrualic Press 7 5000 Ton Bliss Hydrualic Press 8 5000 Ton Bliss Hydrualic Press 9 5000 Ton Bliss Hydrualic Press 10 5000 Ton Bliss Hydrualic Press 11 5000 Ton Bliss Hydrualic Press 12 5000 Ton Bliss Hydrualic Press 13 5000 Ton Bliss Hydrualic Press 14
]]> 2793 2000 Ton Williams and White Hydraulic Press – SOLD CALL FOR UPDATES http://affordable-machinery.com/metal-working-machinery/2000-ton-williams-and-white-hydraulic-press/ Tue, 30 Apr 2013 17:44:05 +0000 http://affordable-machinery.com/?p=2246 Continue reading →]]> 2000 Ton Williams and White Hydraulic Press

  • Serial Number – C-4780
  • Capacity – 2000 Tons
  • Year – 1998
  • Tonnage – 2000
  • Net Lift @ Fast Open – 30 U.S. Tons
  • Distance Between Columns – 177″ x 51″
  • Bed Area – 151″ x 90″
  • Slide Area – 169″ x 90″
  • Stroke – 42″
  • Daylight – 87″
  • Shut Height – 45″ over bed SDAU
  • Overall Height – 27′ 6″ floor to top of hydraulic tank
  • Electrical – 480 V/3 PH/60 HZ
  • Overall Weight – 636,000 #

Operating Speeds:

  • Fast Close – 300 IPM
  • Slow Close – 200 IPM
  • Pressing – 1-9 IPM
  • Stripping – 2-20 IPM
  • Fast Open – 175 IPM

Equipped With:

  • 4-Post Column Constructions
  • Self Leveling Guided Ram
  • Bed Cushions (2)
  • -6″ Stroke
  • -110″ x 56″ Bed Slide Pad
  • -600 Ton Capacity
  • 900 Gallon Oil Reservoir

Condition:

  • Excellent

Price: POR

2000 Ton Williams and White Hydraulic Press 1 2000 Ton Williams and White Hydraulic Press 2



]]> 2246 2,000 Ton Bliss Straight Side Press For Sale – SOLD http://affordable-machinery.com/past-sales/2000-ton-bliss-straight-side-press/ Mon, 09 Jul 2012 13:35:00 +0000 http://affordable-machinery.com/?p=89 Continue reading →]]>

Click Here For Updates on Machines & Equipment As They Become Available

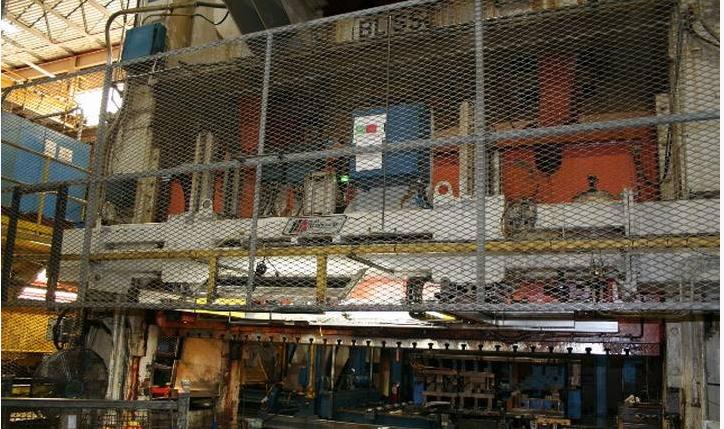

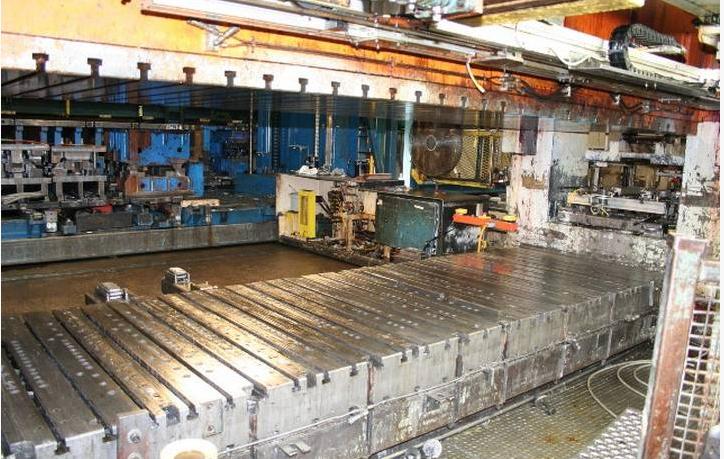

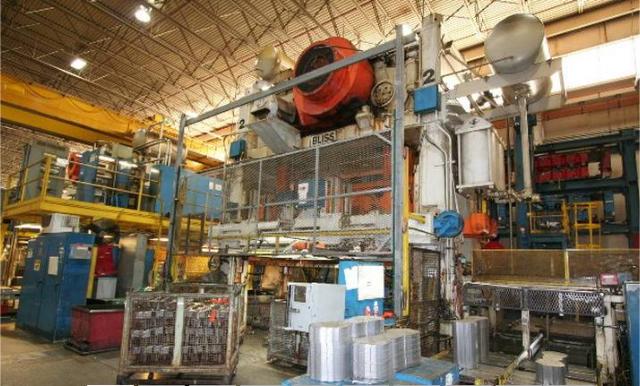

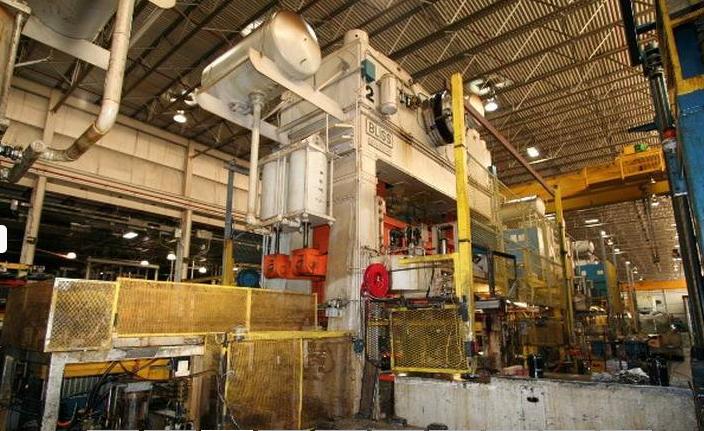

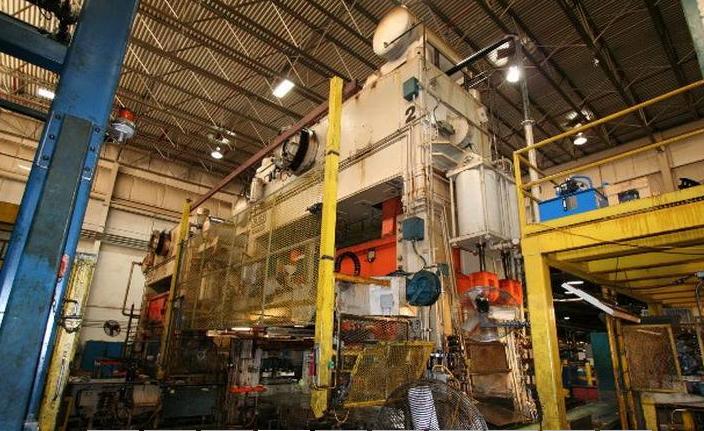

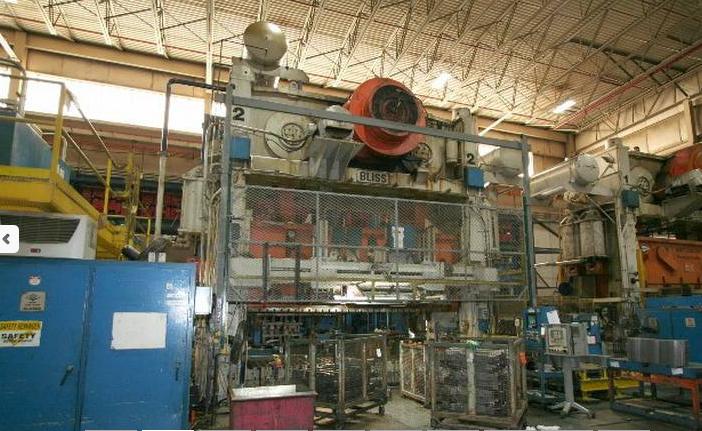

Bliss Straight Side Press — Call for other options, 616-200-4308..this machine is sold!



  • Capacity 2,000 Ton For Sale
  • Speed 12 SPM
  • Bolster Plate 62″ x 200″ FB/LR – 10″ Thick
  • Ram Plate 62″ x 200″ FB/LR – 4″ Thick
  • Shut Height 44″
  • Slide Adjustment 12″
  • Stroke 18″
  • Window 51″

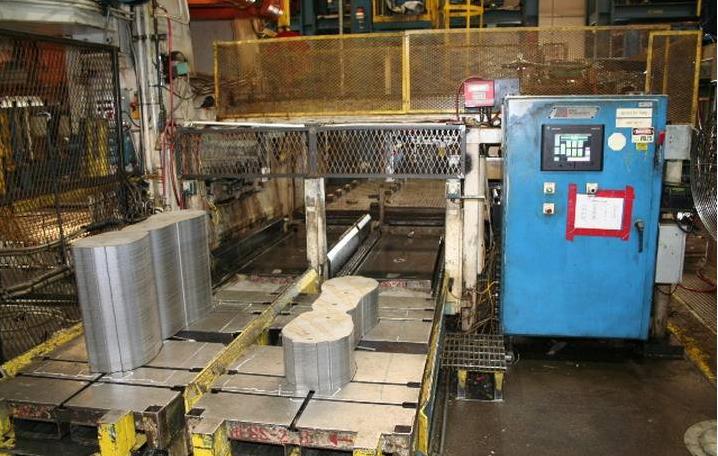

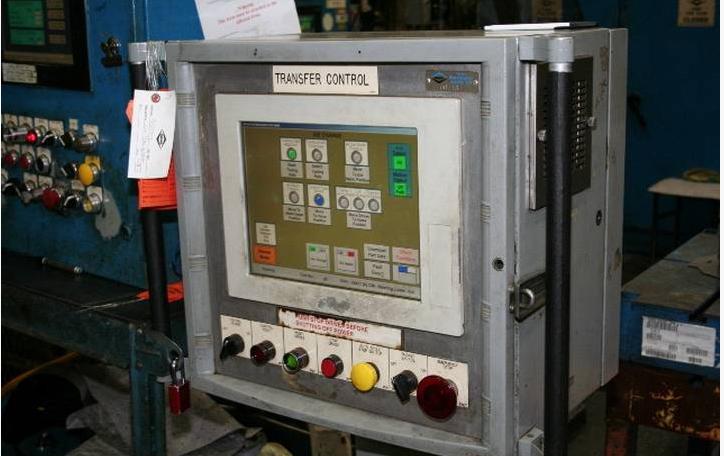

  • Includes: Industrial Innovations Spra-Rite Lubricant Injection System, Atlas Technologies Automated Transfer System with Flex 5000 Controls and Technologies Destacker with Allen-Bradley PanelView 1000 Standard Terminal
