Specifications for Haas HS1-RP

• Year: 2002
• X Axis Travel 24″
• Y Axis Travel 20″
• Z Axis Travel 22″
• Table Size 15.75″ x 2 Pallets
• Spindle Motor 30 HP
• Speed 8,000 RPM
• Spindle Taper CAT40
• Tool Changer 24 ATC

Equipped with:

• Dual HRT-310M Rotary Tables
• Haas Control
• Pallet Changer
• 5 Axis
• High Speed Machining
• 16MB Memory
• Macros
• Rotational Scaling
• Rigid Tapping
• Chip Auger

The post Haas 5 Axis HS-1RP Horizontal CNC Mill For Sale appeared first on Affordable Machinery.

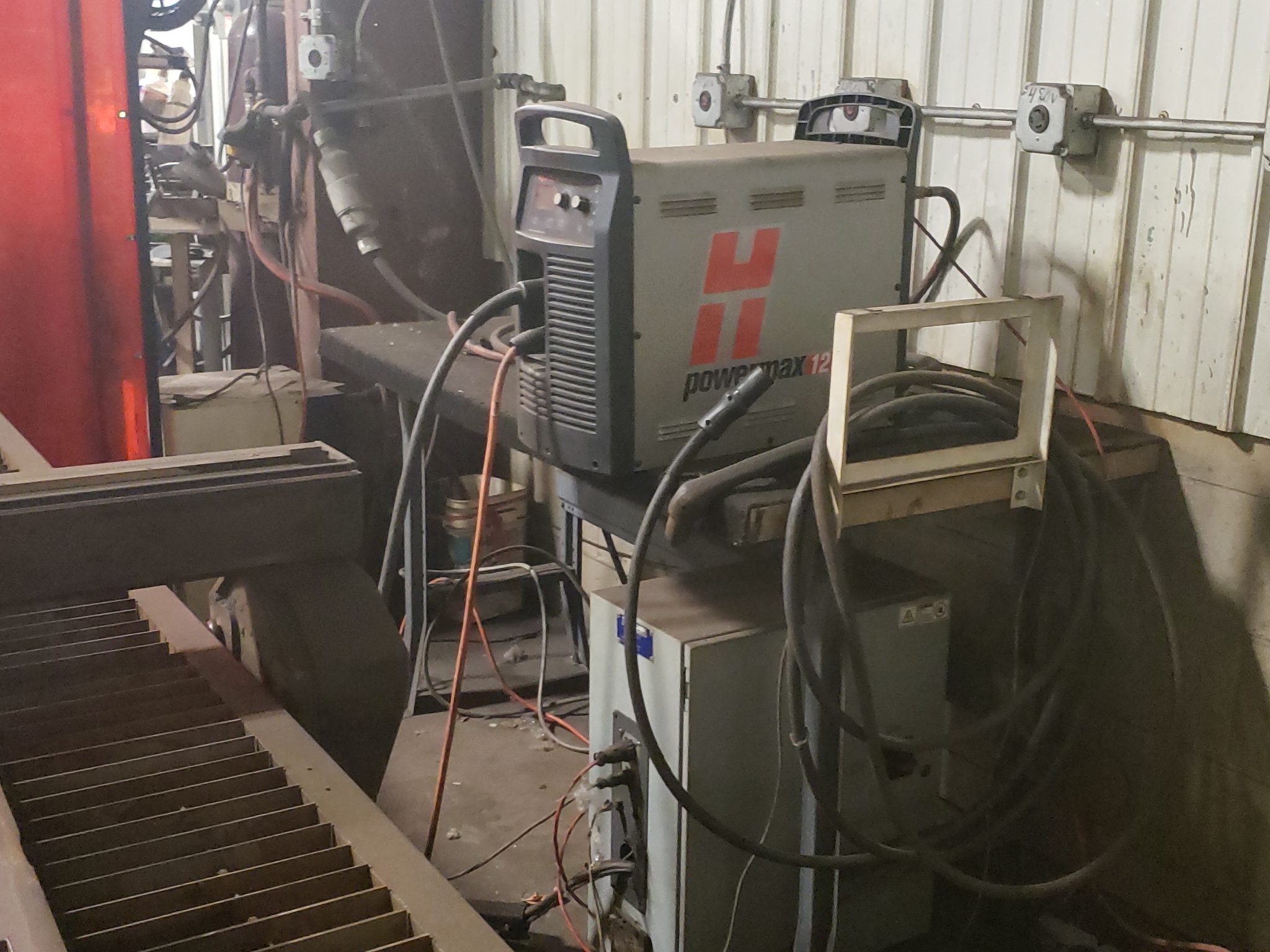

• Year 2011
• Table 5′ x 10′
• 125 AMP
• Cuts up to 1″

The post SOLD – MultiCam CNC Plasma Cutter For Sale – SOLD appeared first on Affordable Machinery.

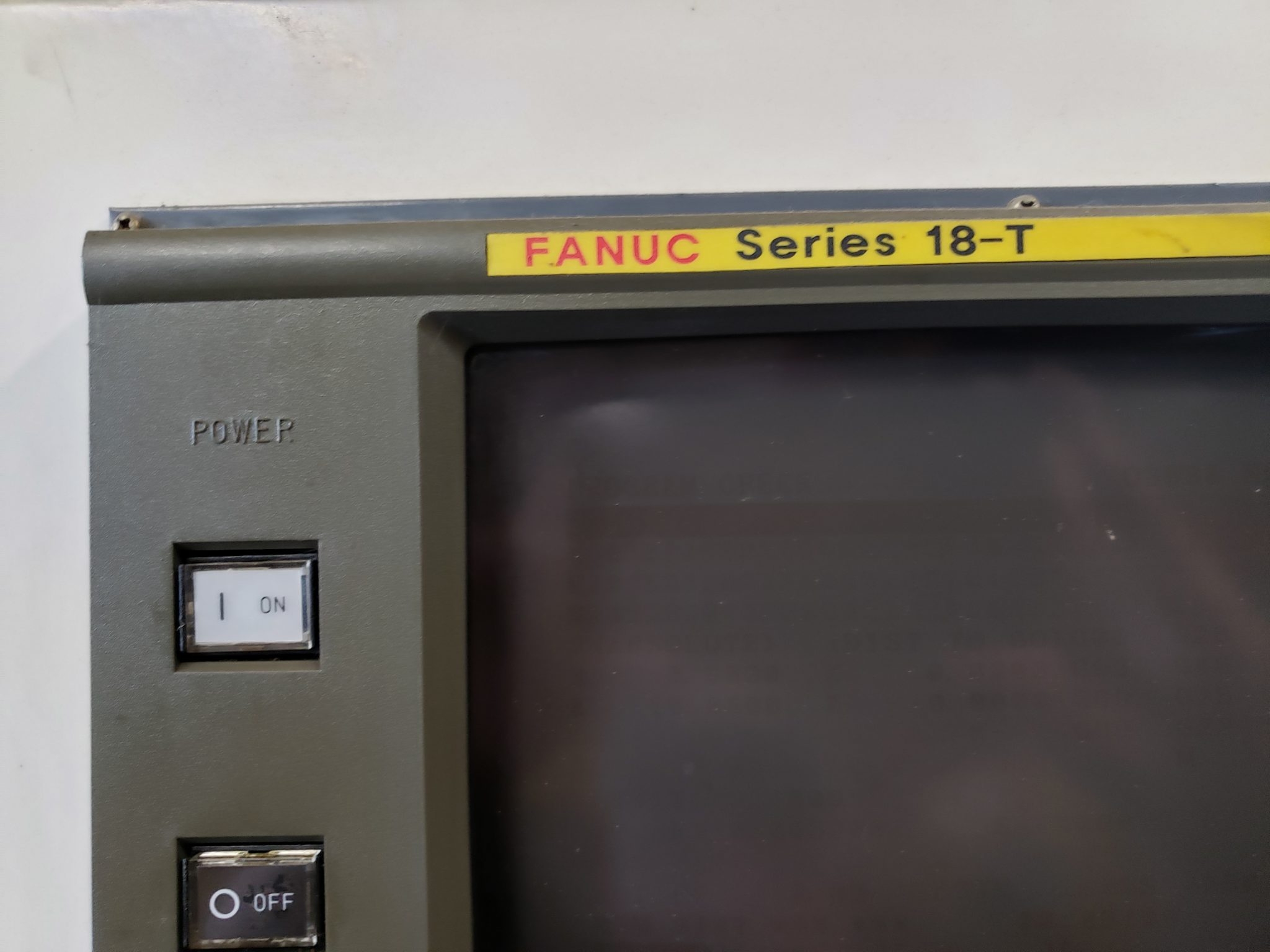

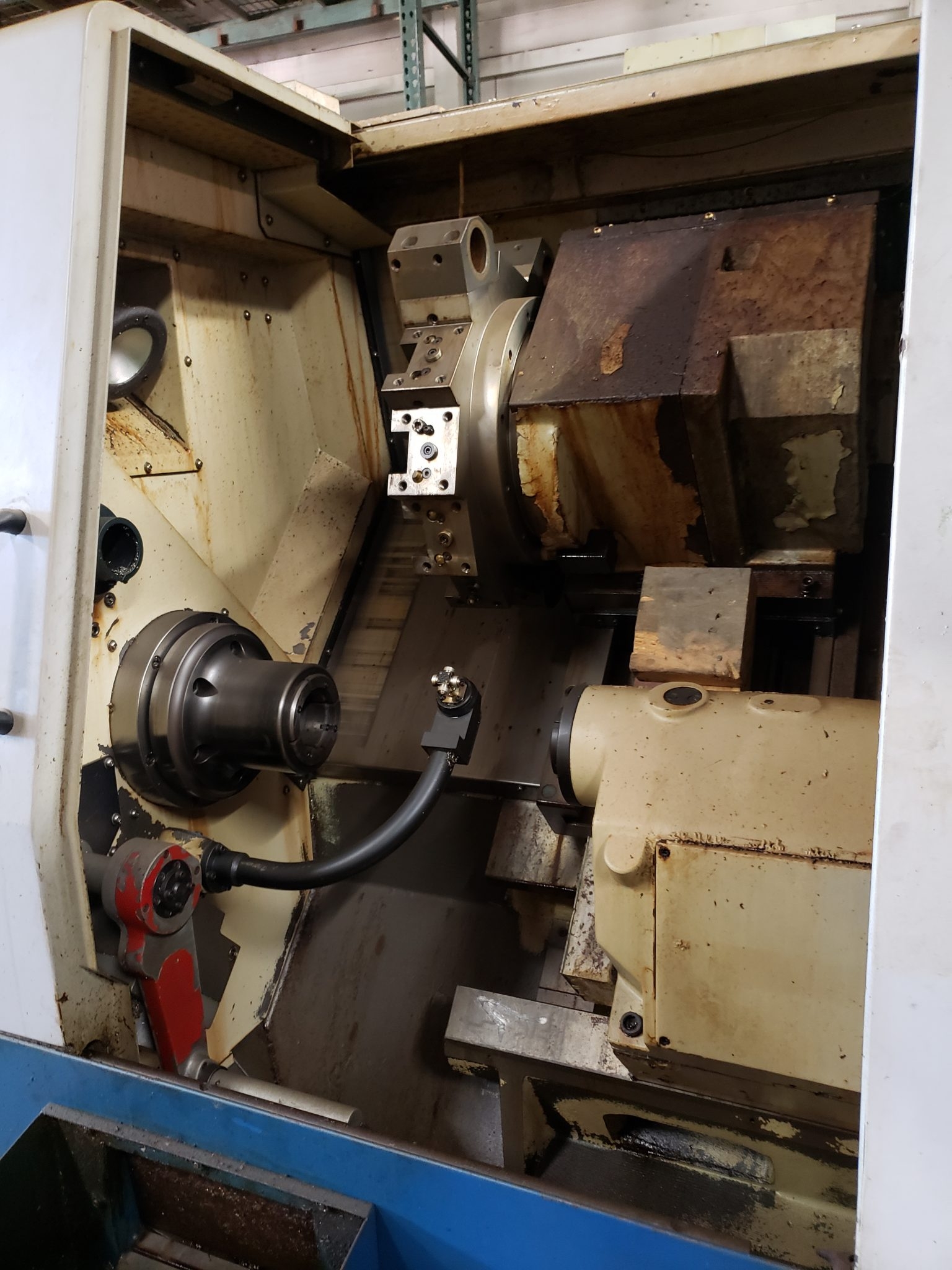

• Year: 1998
• Control: Fanuc 18-T
• Running when removed from service

The post Deawoo Puma 250 CNC Lathe For Sale appeared first on Affordable Machinery.

The post OKK Horizontal Milling Center For Sale appeared first on Affordable Machinery.

• Model: EC-400-4AX
• Inline Direct Drive Spindle
• 40 Pocket SMTC
• Through Spindle Coolant
• Pallet Changer
• 12,000 RPM

Do you have surplus machinery? Shoot us a message with what you have. We are looking to buy machinery TODAY!

The post Haas EC-400 CNC Horizontal Mill Machining Center For Sale appeared first on Affordable Machinery.

• Model: VF-4D
• 4th axis included
• Year: 2003
• 3-Phase
• 50/60hz
• Available Approx. Mid – May 2018

The post SOLD – Haas VF-4D 4 Axis CNC Vertical Machining Center For Sale appeared first on Affordable Machinery.

• Accuracy +/- 6 arc seconds
• Pneumatic
• Indexes 90 degrees
• Table is approx. 16″ diameter

The post Fibrotakt Rotary Indexer Table For Sale appeared first on Affordable Machinery.

• Year: 1999
• Model: SL-250BSMC/500
• Run Time: 14,550 hours
• Swing Over Bed / Cross Slide:  26.8″/ 22.6″
• Maximum Turning Diameter: 15.3″
• Standard Turning Diameter: 8.27”
• Distance Between Centers: 22.6″
• Max Turning Length: 19.10″
• Spindle Speeds: 35-3500
• Spindle Motor:  20/15
• Spindle Nose: A2-8
• Min. Spindle Index Angle: .001”
• Spindle Bore:  3.3″
• Max Bar Size:  2.9″
• Turret Stations: 10
• Turret Index Time:  0.2 Sec
• Square Tool Capacity: 1″
• Boring Bar Capacity: 2.0″
• Axis Travel:
  • Z- Axis:  19.5″
  • X- Axis:  6.3″
• Live Milling: 10 Positions
• Live Milling RPM: 3,000RPM
• Live Milling HP: 8/5.8 HP
• Rapid Travels: X and Z : 708/944.9 IPM
• Tail Stock Taper: MT # 5
• Tail Stock Travel: 4.7”
• Machine Dimensions: 93.7″ x 69.3″ x 74.2″ high
• Power: 220v/3ph

Equipped With:

• MORI SEIKI-Fanuc MSC-501 (Fanuc 18i) CNC CONTROL
• RS-232C PORT INTERFACE FOR DNC OPERATION
• IN-MACHINE TOOL PRE-SETTER
• TAILSTOCK
• 20 HP SPINDLE
• STANDARD COOLANT SYSTEM WITH TANK & PUMP
• MAYFRAN CHIP CONVEYOR
• COLLET CHUCK INCLUDED (WITH SOME COLLETS)

Note:

• Does Not Include Bar Feeder
• Machine was recently removed from service on 2.10.17 and runs good

Click Here For Updates on Machines & Equipment As They Become Available

The post Mori Seiki SL-250 CNC Lathe Turning Center For Sale appeared first on Affordable Machinery.

• • Model: HAWK40/SSM
  • Year: 1999
  • 3 Phase 230v

The post Used Hurco Hawk 40 SSM CNC Mill For Sale – SOLD – appeared first on Affordable Machinery.

The post Used Haas DT-1 CNC Mill For Sale appeared first on Affordable Machinery.
